Plastic Top Bottom PCB Magazine Rack Antistatic For PCB Holder

Certificazione
Cina Winsmart Electronic Co.,Ltd Certificazioni
Cina Winsmart Electronic Co.,Ltd Certificazioni
Rassegne del cliente
La macchina è sulla nostra linea di produzione che è usata e che lavora bene! Era un piacere che fa l'affare con voi!

—— Thomas

Tutte le vostre macchine depaneling del PWB stanno funzionando molto bene, poichè siamo stati usati loro per più di 5 anni! Attrezzature qualificate! Servizio eccellente!

—— Gary

Sono ora online in chat

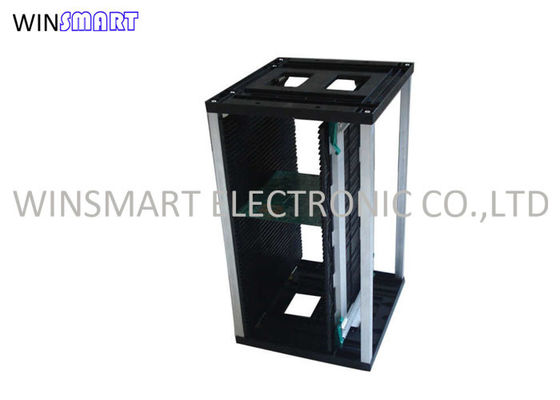

Plastic Top Bottom PCB Magazine Rack Antistatic For PCB Holder

Plastic Top Bottom PCB Magazine Rack Antistatic For PCB Holder
Plastic Top Bottom PCB Magazine Rack Antistatic For PCB Holder Plastic Top Bottom PCB Magazine Rack Antistatic For PCB Holder

Grande immagine :  Plastic Top Bottom PCB Magazine Rack Antistatic For PCB Holder

Dettagli:
Luogo di origine: La CINA
Marca: Winsmart
Certificazione: CE
Numero di modello: PM0409
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 PC
Prezzo: USD1-100/Set
Imballaggi particolari: Cassa del compensato
Tempi di consegna: 7-14 giorni
Termini di pagamento: L/C, T/T, Western Union
Capacità di alimentazione: 5000 insiemi al mese

Plastic Top Bottom PCB Magazine Rack Antistatic For PCB Holder

descrizione
Materiale: Plastica Dimensione: 355x320x563mm
Impiegati.: 80°C (120°C e 150°C) facoltativi Uso: Stoccaggio del PWB
Circostanza: Nuovo NOME: Scaffale di rivista di plastica del PWB
Evidenziare:

PCB Magazine Rack Antistatic

,

Plastic PCB Magazine Rack

,

PCB Magazine Rack PCB Holder

Plastic Top Bottom SMT Antistatic ESD Plastic PCB Magazine Rack 355*320*563mm





ESD PCB Magainze Rack Dimensions Introduction:

1. Dimension: 355x320x563mm, storing 50pcs of 350x(50-250)MM PBC Boards

    Depth 3.5mm, width 5mm, pitch 10mm

2. Dimension: 355x315x580mm, storing 50pcs of 350x(80-250)MM PBC Boards

    Depth 3.5mm, width 5mm, pitch 10mm

3. Dimension: 460x400x563mm, storing 50pcs of 460x(100-330)MM PBC Boards

    Depth 3.5mm, width 5mm, pitch 10mm

4. Dimension: 535x460x570mm, storing 50pcs of 535x(50-390)MM PBC Boards

    Depth 3.5mm, width 5mm, pitch 10mm

5. Dimension: 535x530x570mm, storing 50pcs of 535x(50-460)MM PBC Boards

    Depth 3.5mm, width 5mm, pitch 10mm



ESD PCB Magazine Rack Specification:

Name ESD PCB Magazine Rack
Surface resistance 104~106 Ω
Overall size 355x320x563mm
Storage capacity 50pcs
PCB Spec L355xW(50-250)mm
Side guide slot depth 3.5mm, width 5mm, pitch 10mm
Heat resistant 80°C/120°C/200 °C
Ref. Position A=34mm, B=34mm
Materials Aluminum + steel

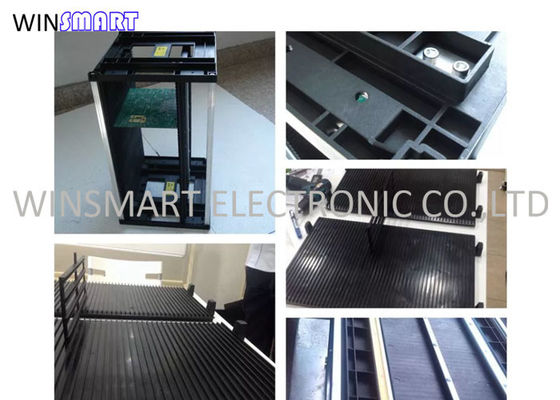

ESD PCB Magazine Rack Details:

Plastic Top Bottom PCB Magazine Rack Antistatic For PCB Holder 0



ESD PCB Magazine Rack Package:

Plastic Top Bottom PCB Magazine Rack Antistatic For PCB Holder 1
